Design

:bulb: Tip: The .puml files used to create diagrams in this document are in the docs/diagrams folder. Refer to the PlantUML Tutorial at se-edu/guides to learn how to create and edit diagrams.

Architecture

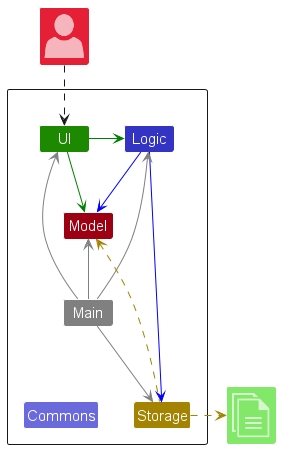

The Architecture Diagram given above explains the high-level design of the app.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main (consisting of classes Main and MainApp) is in charge of the app launch and shut down.

  • At app launch, it initializes the other components in the correct sequence, and connects them up with each other.
  • At shut down, it shuts down the other components and invokes cleanup methods where necessary.

The bulk of the app’s work is done by the following four components:

  • UI: The UI of the app.
  • Logic: The command executor.
  • Model: Holds the data of the app in memory.
  • Storage: Reads data from, and writes data to, the hard disk.

Commons represents a collection of classes used by multiple other components.

How the architecture components interact with each other

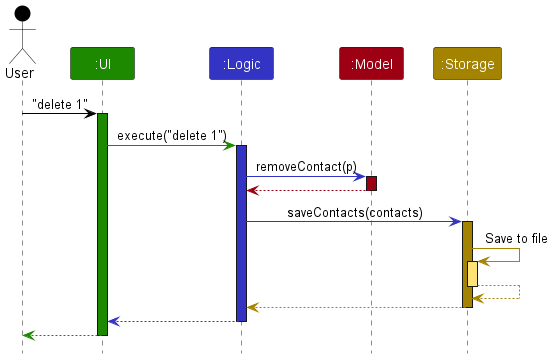

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete 1.

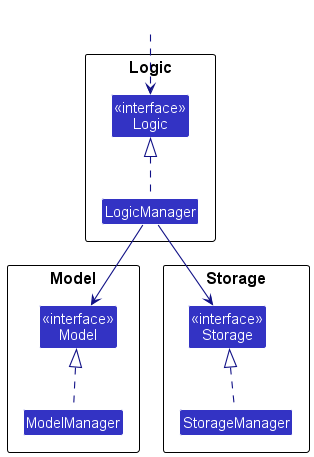

Each of the four main components (also shown in the diagram above),

  • defines its API in an interface with the same name as the Component.
  • implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point.

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component’s being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

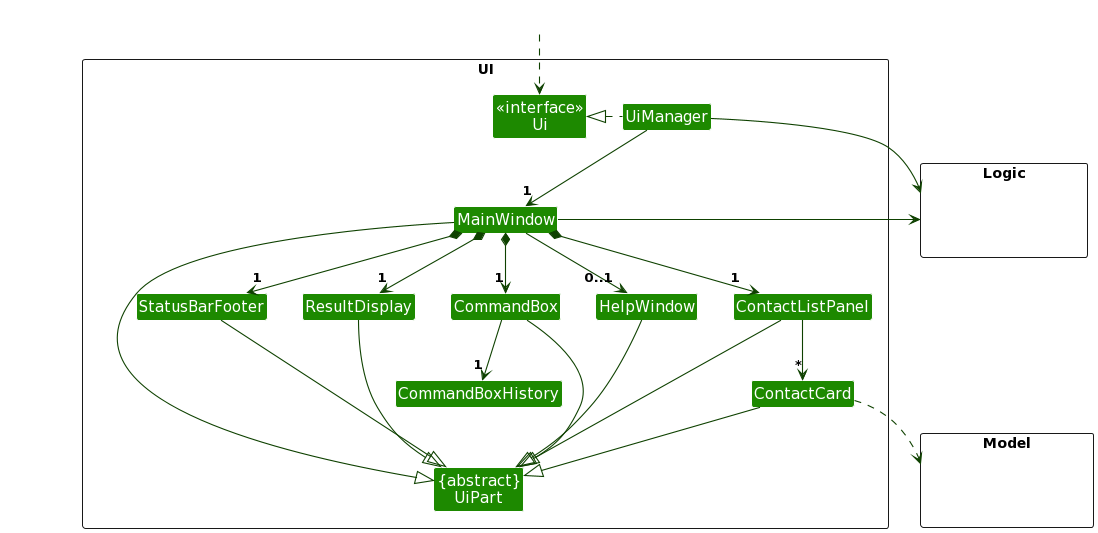

Structure of the UI Component

(Remark: The overlapping triangles into UiPart are all class inheritance triangles (limitation of PlantUML).)

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, ContactListPanel, StatusBarFooter etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

  • executes user commands using the Logic component.
  • listens for changes to Model data so that the UI can be updated with the modified data.
  • keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
  • depends on some classes in the Model component, as it displays Contact object residing in the Model.

The CommandBox part keeps a reference to a CommandBoxHistory object, which stores the history of entered commands, allowing for the functionality of navigating to previous commands using the up/down arrow keys within the CommandBox.

Logic component

API : Logic.java

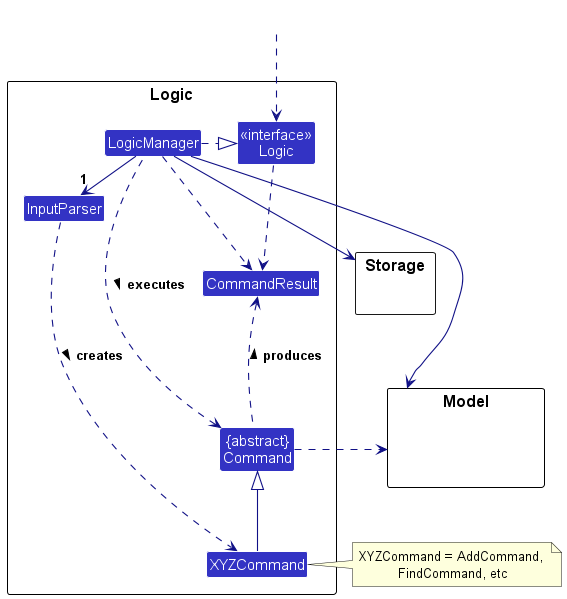

Here’s a (partial) class diagram of the Logic component:

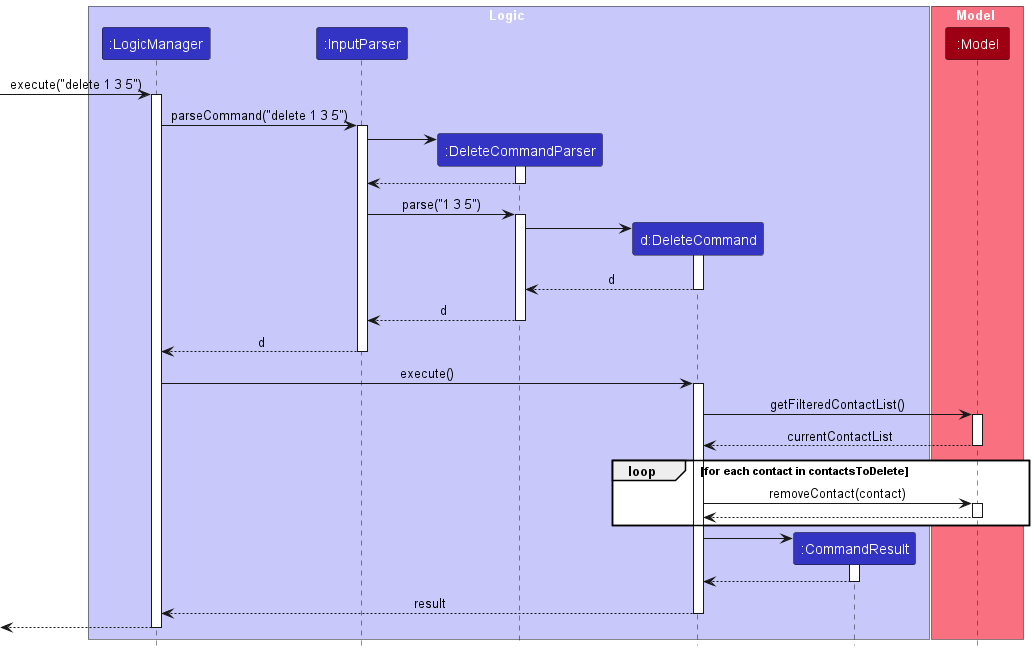

The sequence diagram below illustrates the interactions within the Logic component, taking execute("delete 1 3 5") API call as an example.

Interactions Inside the Logic Component for the `delete 1 3 5` Command

How the Logic component works:

  1. When Logic is called upon to execute a command, it is passed to an InputParser object which in turn creates a parser that matches the command (e.g., DeleteCommandParser) and uses it to parse the command.
  2. This results in a Command object (more precisely, an object of one of its subclasses e.g., DeleteCommand) which is executed by the LogicManager.
  3. The command can communicate with the Model when it is executed (e.g. to delete a contact).
  4. The result of the command execution is encapsulated as a CommandResult object which is returned back from Logic.

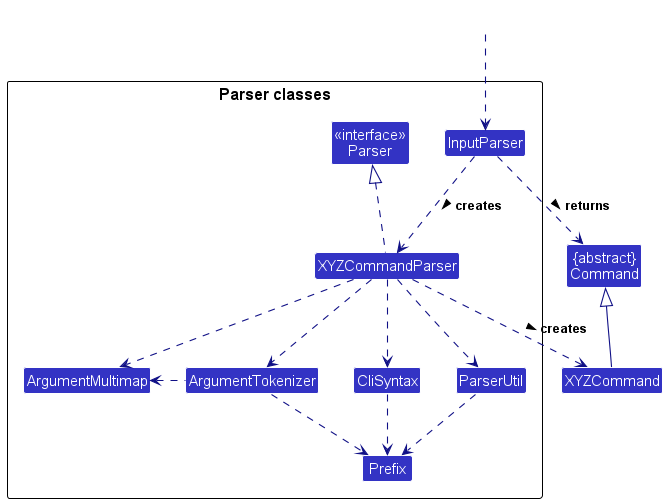

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

How the parsing works:

  • When called upon to parse a user command, the InputParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddCommand) which the InputParser returns back as a Command object.
  • All XYZCommandParser classes (e.g., AddCommandParser, DeleteCommandParser, …) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

Model component

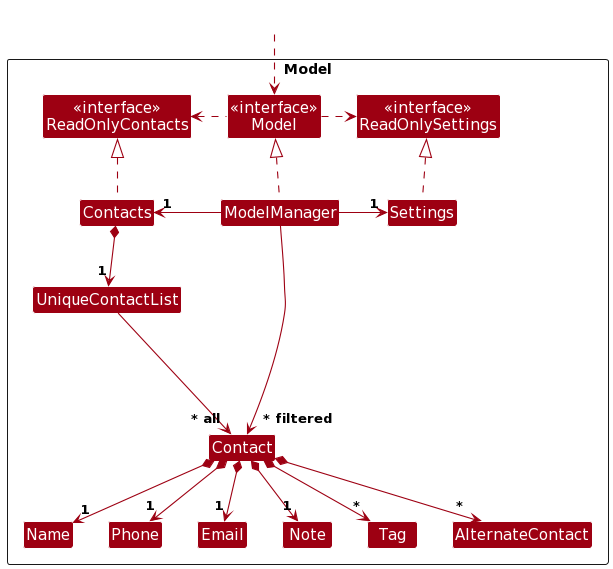

API : Model.java

The Model component,

  • stores the contacts data i.e., all Contact objects (which are contained in a UniqueContactList object).
  • stores the currently ‘selected’ Contact objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Contact> that can be ‘observed’ e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
  • stores a Settings object that represents the user’s preferences. This is exposed to the outside as a ReadOnlySettings objects.
  • does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)

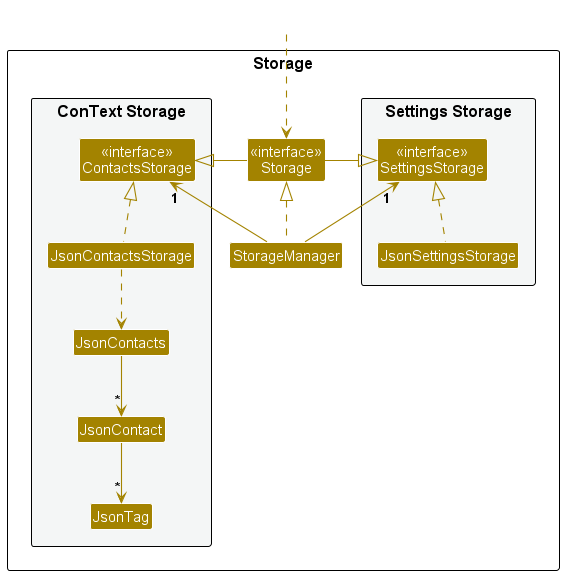

Storage component

API : Storage.java

The Storage component,

  • can save both contacts data and user preference data in JSON format, and read them back into corresponding objects.
  • inherits from both ContactsStorage and SettingsStorage, which means it can be treated as either one (if only the functionality of only one is needed).
  • depends on some classes in the Model component (because the Storage component’s job is to save/retrieve objects that belong to the Model)

Common classes

Classes used by multiple components are in the swe.context.commons package.

Implementation

This section describes some noteworthy details on how certain features are implemented.

Add feature

The add feature is facilitated by ModelManager and implements Model.

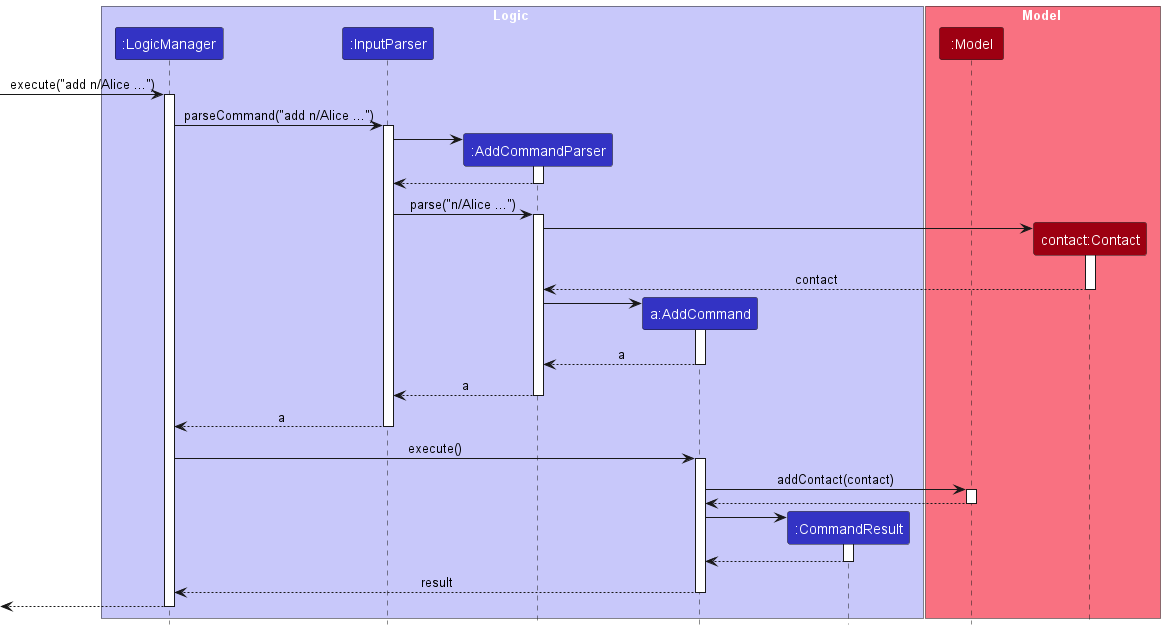

The following sequence diagram shows how the add command works:

AddSequenceDiagram

It adds an contact by calling Model#addContact, which adds the newly created contact into the UniqueContactList.

The following activity diagram summarises what happens when a user executes a new command.

AddActivityDiagram

Filter feature

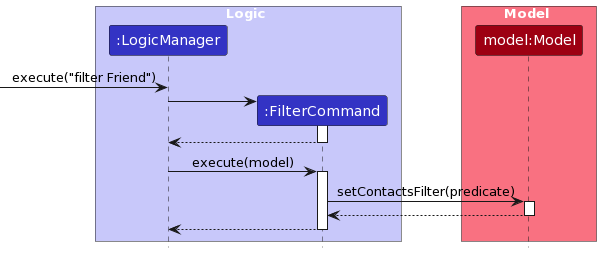

The following sequence diagram shows how the filter command works:

FilterSequenceDiagram

It filters contacts by calling Model#setContactsFilter with a ContainsTagPredicate predicate as argument, which sets the predicate on the list of contacts in the ModelManager.

Maintaining sorting while supporting filtering

The contact list is automatically kept in a constantly sorted state by leveraging SortedList from the JavaFX Collections library. Since the class works with ObservableLists, which the Model’s Contacts also utilises, we are able to leverage this class more easily.

The Model obtains an unsorted, unmodifiable list from Contacts and wraps it in a SortedList. We specify an AlphabeticalComparator to define our own alphabetical sorting order, which takes capitalization into account. This facilitates the intended propagation of changes from the nested list to the sorted list.

For operability with the find and filter feature, this sorted list is further wrapped in a FilteredList to limit the scope of what the user sees as needed. A dummy filter Predicate which allows all contacts to pass is used as the default filter. It is this filtered list that the model stores in a field.

Edit feature

The edit feature is facilitated by ModelManager and implements Model.

It is similar in implementation to the add feature, except it edits a contact by calling Model#updateContact, which replaces the old contact with the edited contact in the UniqueContactList.

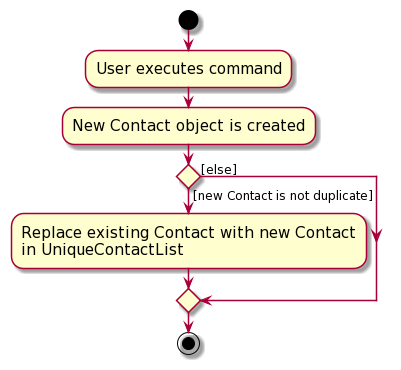

The following activity diagram summarises what happens when a user executes an edit command.

EditActivityDiagram

The feature of navigating between command history using the up/down arrow keys, is facilitated by CommandBoxHistory. CommandBox keeps a reference to a CommandBoxHistory object which stores the history of entered commands.

CommandBoxHistory stores a list of commands, which behaves externally as if its last element is always the empty string. This is so that the user can enter a new command when at the last position in the command history.

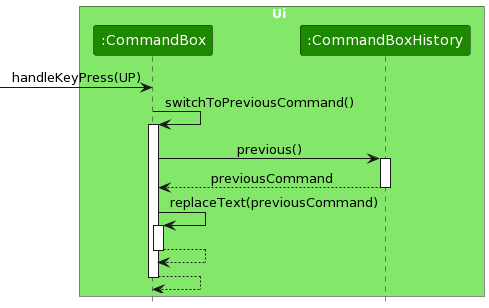

The following sequence diagram summarises what happens when the user presses the up arrow key to navigate to the previous command in history.

CommandBoxHistorySequenceDiagram

The behaviour is very similar when the user presses the down arrow key to navigate to the next command in history, so we omit the corresponding sequence diagram.

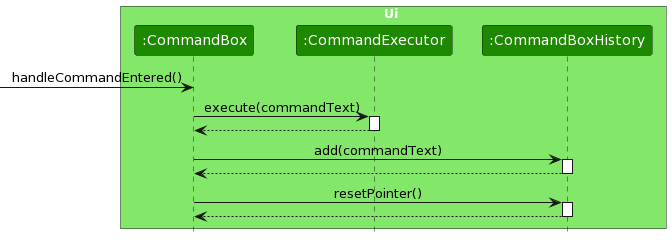

The following sequence diagram summarises what happens when the user successfully executes a new command, and this new command is stored in the command history.

CommandBoxHistoryNewSequenceDiagram

The command is only stored in history if the execution of the command (by CommandExecutor) is successful. The position in history is also reset to the last position (empty string) using CommandBoxHistory#resetPointer.

Acknowledgements

Appendix: Requirements

Product scope

Target user profile: NUS SoC students, who:

  • Can type fast and prefer typing
  • Are reasonably comfortable with command-line inputs
  • Wish to label contacts by category (e.g. professors, classmates from certain courses, friends)
  • Have many different ways to reach their contacts (e.g. social media like Telegram/Discord, additional phone numbers like house phone)

Value proposition: Manage contacts quickly via text commands, with useful features relevant to SoC students.

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Priority As a …​ I want to …​ So that I can…​
* * * user add contacts keep track of my friends and schoolmates
* * * user delete contacts remove my contact with that person
* * * user view my contacts know who I have as contacts
* * user edit contacts make changes to my contact info when they occur
* * user search for contacts find a specific contact directly and easily
* * user add tags to contacts classify them based on contact type
* * user merge duplicate contacts my contact list stays clean
* * user sort contacts by certain criteria find contacts satisfying a certain criteria easily
* * user save alternate contact info for my contacts keep track of the various ways I can contact the same person
* * user pin frequent contacts so they appear at the top when I open the app access my most important contacts quickly
* * user indicate where I met each contact keep track of people I have various levels of familiarity with
* * user view contacts by groups or type more easily manage related contacts
* * user export my contacts to an external file backup my contacts’ information
* * user import my contacts from an external file quickly populate the app with my existing contacts
* * user clear all contacts data quickly erase all information stored when I will no longer use the app
* user who prefers CLI use keyboard shortcuts perform tasks more efficiently
* user see a different background colour for each contact differentiate between contacts more easily
* infrequent user view a “cheatsheet” or help dialog for the text commands remember some basic commands I may have forgotten
* advanced user search/filter by specific parts of contacts (e.g. containing certain words) narrow down contacts to exactly what I am looking for
* user who prefers CLI switch between previously entered commands in history easily repeat previous commands
* busy user use icons to denote certain contact information identify the information I want at a glance

Use cases

(For all use cases below, the System is the ConText and the Actor is the user, unless specified otherwise)

Use case: UC01 - Add a contact

MSS

  1. User requests to add a contact.

  2. ConText adds the contact.

    Use case ends.

Extensions

  • 1a. The given data is invalid.

    • 1a1. ConText shows an error message.

      Use case resumes at step 1.

Use case: UC02 - Delete a contact

MSS

  1. User requests to view the list of contacts (UC03).
  2. User requests to delete a specific contact in the list.

  3. ConText deletes the contact.

    Use case ends.

Extensions

  • 2a. An invalid contact to edit is specified.

    • 2a1. ConText shows an error message.

      Use case resumes at step 2.

Use case: UC03 - List all contacts

MSS

  1. User requests to list contacts.

  2. ConText shows a list of contacts.

    Use case ends.

Extensions

  • 2a. The list is empty.

    Use case ends

Use case: UC04 - Edit a contact

MSS

  1. User requests to view the list of contacts (UC03).
  2. User requests to edit a contact.

  3. ConText edits the contact.

    Use case ends.

Extensions

  • 2a. An invalid contact to edit is specified.

    • 2a1. ConText shows an error message.

      Use case resumes at step 2.

  • 2b. The given data is incorrect.

    • 2b1. ConText shows an error message.

      Use case resumes at step 2.

Use case: UC05 - Clear all contacts

MSS

  1. User requests to clear all contacts.

  2. ConText clears all contacts.

    Use case ends.

Use case: UC06 - Find a contact

MSS

  1. User requests to find a contact.

  2. ConText displays a list of contacts matching the given data.

    Use case ends.

Extensions

  • 2a. The filtered list is empty.

    Use case ends.

Use case: UC07 - Filter tags

MSS

  1. User requests to filter the list of contacts by a given tag.

  2. ConText displays a filtered list of contacts based on the given tag.

    Use case ends.

Extensions

  • 2a. The filtered list is empty.

    Use case ends.

Non-functional requirements

  1. “Brownfield” - Changes to the codebase must be done in small increments.
  2. “Typing preferred” - The product must target users who can type fast and prefer CLI as their means of input.
  3. “Single user” - The product must be designed for a single user.
  4. “Incremental” - The product must be developed breadth-first as well as consistently each week.
  5. “Human editable file” - Data must be stored locally in a human-editable text file format.
  6. “No DBMS” - DataBase Management Systems must not be used.
  7. “OO” - Software must mostly follow the object-oriented paradigm.
  8. “Platform independent” - Software must work on Windows, Linux, and OSX. I.e., avoid OS-dependent libraries and OS-specific features.
  9. “Java version” - Software must work on a computer that has Java version 11 installed.
  10. “Portable” - Software must work without requiring an installer.
  11. “No remote server” - Software must not depend on a remote server.
  12. “External software” - Any 3rd party frameworks/libraries/services used must:
    1. Be free and open-source (except services), with permissive license terms (e.g. non-time limited trial).
    2. Not require installation by users. Services that require account creation on their 3rd party service are strongly discouraged.
    3. Not violate other project constraints.
    4. Be approved by the teaching team.
  13. “Screen resolution” - GUI must work well for standard screen resolutions and scales, as specified in the admin info. GUI must still be usable if those factors are non-standard.
  14. “Single file” - Software must all be packed into a single JAR file.
  15. “File size” - Software must not exceed 100MB and must not be unnecessarily bloated. Documents must not exceed 15MB per file.
  16. “PDF-friendly” - Developer and user guides must be PDF-friendly, without using expandable panels, embedded videos, animated GIFs etc.
  17. “Minimal network” - Any public APIs used should have a fallback mechanism in the event that they are down. Any NUS data used should have the approval of NUS IT.
  18. “Testability” - Features should not be hard to test or make the product hard to test, be the testing manual or automated.
  19. “CLI first” - Users who can type fast should be able to accomplish most tasks faster via the CLI as compared to if they were to use a hypothetical GUI-only version of the product.
  20. There must exist an image with the exact name and format docs/images/Ui.png depicting the final product, with similar proportions as the original AB3 image.
  21. There must exist an AboutUs page that closely follows the original template, such that CS2103 grading scripts can understand it.
    1. Each team member must have an appropriately named lowercase PNG of their profile picture, as specified in the admin info.
  22. There must exist Project Portfolio Pages (PPPs) in docs/team/, containing sections specified in the admin info.
    1. Each team member must have their own appropriately named lowercase page file, as specified in the admin info.
    2. The page must be written to account for paged PDF conversion.
  23. Documentation must be built using Jekyll or MarkBind, then hosted via GitHub Pages, such that they are compatible with CS2103 grading scripts.
  24. Branches must not be deleted after their associated PRs have been merged, so that CS2103 grading scripts can detect that the correct workflow was used.
  25. The README.md must acknowledge SE-EDU’s AB3, which this project is based on. It should also contain the Ui.png, as well as the repo’s GitHub Actions build status badge.

Glossary

  • Architecture Diagram: A visual representation that depicts the high-level design and structure of the software application.

  • Component: A modular part of the system with a distinct responsibility. The main components mentioned are UI, Logic, Model, and Storage.

  • Commons: Classes or utilities used by multiple components of the application.

  • UI (User Interface): The space where interactions between humans and the software occur. The goal of this interaction is to allow effective operation and control of the machine from the human end.

  • GUI (Graphical User Interface): A type of user interface that allows users to interact with electronic devices through graphical elements such as images, buttons, icons, and windows instead of text-based command lines.

  • Logic: In the context of software, it refers to the set of rules and algorithms that process and respond to user inputs.

  • Model: The part of the application that manages data and application logic.

  • Storage: The part of the application responsible for saving and loading data to and from persistent storage.

  • API (Application Programming Interface): A set of rules and tools that allows different software applications to communicate with each other. In this context, it refers to the interfaces defined for each component, such as Logic.java, Model.java, etc.

  • Sequence Diagram: A type of UML diagram that shows how objects interact in a specific order.

  • UML (Unified Modeling Language): A standardized modeling language enabling developers to specify, visualize, construct, and document artifacts of a software system.

  • PlantUML: A tool that allows users to create UML diagrams using a simple and intuitive language.

  • puml files: Files written in a text-based markup language used by PlantUML to generate UML diagrams.

  • MSS (Main Success Scenario): Represents the sequence of steps that describe a successful execution of a use case.

  • CLI (Command Line Interface): A user interface that allows users to interact with the software by typing text-based commands.

  • JavaFX: A Java library used to create desktop applications. It is used for designing the user interface of this application.

  • ObservableList: A list that allows listeners to track changes when they occur. Used in the context of JavaFX to automatically update the UI when the data changes.

  • JSON (JavaScript Object Notation): A lightweight data-interchange format that is easy for humans to read and write and easy for machines to parse and generate. Used for storing data in this application.

  • JUnit: A testing framework for Java programming language. JUnit5 refers to the fifth major version of this framework.

  • Predicate: A functional interface that represents a condition (test) and is used to filter data.

  • Brownfield: A term used in software development to describe a project that has existing constraints, typically an existing system or codebase, as opposed to a greenfield project which starts from scratch.

  • Platform independent: Software that can run on any computer regardless of its operating system, such as Mac/Windows/Linux.

  • Human editable file: A file format designed to be easily readable and editable by humans.

  • Portable: Software that doesn’t require installation and can be run from any location, such as from a USB stick.

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

:information_source: Note: These instructions only provide a starting point for testers to work on; testers are expected to do more exploratory testing.

Launch and shutdown

  1. Initial launch

    1. Download the jar file and place it into an empty folder

    2. Open a command terminal, cd into the folder you put the JAR file in, and use the java -jar context.jar command to run the app.

Adding a new contact

  1. Adding a contact with all fields

    1. Test case: add n/John Doe p/12345678 e/john@example.com o/notes t/friend a/Telegram: johndoe Expected: A new contact with the name “John Doe”, phone number “12345678”, email “john@example.com”, a note “notes”, tagged as “friend”, and an alternate contact “Telegram: johndoe” is added to the list.

    2. Test case: add n/Alice p/87654321 e/alice@example.com Expected: A new contact with the name “Alice”, phone number “87654321”, and email “alice@example.com” is added. Optional fields are left blank.

    3. Other incorrect add commands to try: add, add n/John Doe, add e/john@example.com, add n/John Doe p/12
      Expected: Error message indicating the correct format for the add command.

Editing an existing contact

  1. Editing a contact’s name and email

    1. Prerequisites: Have at least one contact in the list.

    2. Test case: edit 1 n/Jane Doe e/jane@example.com Expected: The first contact in the list has its name changed to “Jane Doe” and email to “jane@example.com”.

    3. Test case: edit 1 t/ Expected: All of the existing tags of the first contact in the list are removed while other information of the contact remains unchanged.

    4. Test case: edit 2 n/Bob Expected: Error message indicating the correct format for the edit command.

    5. Other incorrect edit commands to try: edit, edit x (where x is larger than the number of contacts in ConText), edit 1 n/, edit 1 e/
      Expected: Error message indicating the correct or valid usage of the edit command.

Deleting a contact

  1. Deleting a contact while all contacts are being shown

    1. Prerequisites: List all contacts using the list command. Multiple contacts in the list.

    2. Test case: delete 1
      Expected: First contact is deleted from the list. Details of the deleted contact shown in the status message. Timestamp in the status bar is updated.

    3. Test case: delete 0
      Expected: No contact is deleted. Error details shown in the status message. Status bar remains the same.

    4. Test case: delete 1 2 3
      Expected: First, second, and third contacts are deleted from the list. Details of the deleted contacts shown in the status message. Timestamp in the status bar is updated.

    5. Test case: delete 1 1 2
      Expected: First and second contacts are deleted from the list without duplication. Details of the deleted contacts shown in the status message. Timestamp in the status bar is updated.

    6. Other incorrect delete commands to try: delete, delete x, ... (where x is larger than the list size)
      Expected: Similar to previous.

Filtering contacts by tag

  1. Filtering contacts using a specific tag

    1. Test case: filter friend Expected: List all contacts tagged as “friend”.

    2. Other incorrect filter commands to try: filter, filter @#$% (assuming no such tags)
      Expected: Error message indicating the correct usage of the filter command or no contacts found message.

Saving data

  1. Dealing with missing/corrupted data files

    1. Test case: Navigate to the folder with the JAR file, and remove all files and subfolders except the JAR file. Relaunch the app. Expected: The app will launch normally, with sample contact data.

    2. Test case: Navigate to the folder with the JAR file, and make arbitrary changes to the \data\contacts.json file, so as to render it invalid. Relaunch the app. Expected: The app will launch normally, with an empty contact list.

Appendix: Planned enhancements

  1. Currently, error messages displayed in ConText are generic. For example, if a user enters a negative index, the error message Invalid command format is displayed, even if the command format is technically correct. We plan to add more specific error messages for invalid indices (e.g. non-positive, too large, or does not exist in the list), to let the user know that the index itself is invalid, and why.

  2. Currently, special characters such as - and / are not allowed in names, even though they could conceivably be part of a contact’s legal name. We plan to allow for special characters to be included in a contact’s name.

  3. Currently, the find command only allows for matching of full words. For example, the input keyword John will not match the name Johnny stored in the list. This may lead to unintended behaviour for some users. We plan to allow partial matches of contact names for find.

  4. Currently, duplicate contacts are only detected by contacts having completely identical names, and not by other fields such as email address. Although this is meant to remove ambiguity in duplicate detection, it may be counter-intuitive for some users. We plan to include additional warning messages for the detection of duplicate contacts. We will warn users if they are adding contacts with duplicate information, such as duplicate email address, or names which differ only by whitespace (in the middle). The user can then confirm whether they would like the duplicate contact to go through, or whether they would like to make changes to the duplicate contact.

  5. Currently, duplicate values for deletion indices, as well as parameters like t/ and a/, get silently merged. This is not outright rejected for the convenience of users. However, users may have accidentally entered such duplicate values, which may result in the app’s behaviour differing from users’ expectations. In such cases, we plan to display additional warning messages for commands like add, edit, and delete, so that users may check if their specifying of duplicate values is intentional. Users may then press enter again to confirm the command’s execution, or edit the command.

  6. Currently, if no note (i.e. no o/ parameter) is specified when adding a contact, the note’s value defaults to being empty (""). The UI accounts for empty notes by not taking up an extra line to display the empty note. When users do specify a note, they may explicitly specify an empty note (i.e. o/ with no value). This is not outright rejected for the convenience of users, since empty notes are allowed. However, users may have forgotten to specify a value for the note, which may result in the app’s behaviour differing from users’ expectations. In such cases, we plan to display an additional warning message for commands like add, so that users may check if their specifying of empty notes is intentional.

  7. Currently, users are allowed to enter very flexible phone number values. The only validation requirement is that the phone number begins with 3 digits. This allows users to use the feature as they wish. For example, although the standard intended usage is for users to enter just the digits of a phone number (e.g. 98765432), they are also allowed to enter a value such as 65432109 (office); 98765432 (mobile). However, this flexibility may result in users accidentally entering invalid phone numbers, such as 9876p/5432. Therefore, if users enter a phone number that does not contain only 3-15 digits, we plan to display an additional warning message for commands like add and edit, so that users may check if their specifying of such a value is intentional. Users may then press enter again to confirm the command’s execution, or edit the command. The added need to confirm non-standard phone numbers nudges users towards using the alternate contacts feature for additional phone numbers instead.

  8. Currently, alternate contacts do not allow spaces in the “type” portion, and do not allow special characters such as @ in the “username” portion. We plan to allow spaces in the “type” portion for added flexibility. We also plan to allow special characters in the “username” portion, by allowing username values which match existing phone number/email validation. Similarly, we would also allow all phone numbers to optionally start with the special character + before the required digits.
